Ventilator settings, from IBW to first breath

Published August 1, 2026 · Updated August 1, 2026

Ventilator settings start with one number: the patient’s height. Measure it if you can. A tape measure lives in plenty of jump bags and takes seconds to use, and a measured height beats a guess every time. In the field the honest reality is that plenty of crews eyeball it, especially with a patient already supine on a stretcher, so know that every downstream number inherits whatever error that estimate carries. From there, everything follows a fixed sequence: ideal body weight, tidal volume, minute ventilation and rate, PEEP and FiO2, then reassessment.

None of that arithmetic is hard on paper. It is hard at 2 a.m. with an airway secured, a monitor alarming, and a partner asking for numbers. That is the specific problem the Rapid Vent Calculator app was built for: it runs the same formulas in this guide, in seconds, so the math is not the thing competing for your attention. This guide covers what the app calculates, and just as importantly, what it cannot know.

What the sequence produces is a starting point, not an answer. The right settings for any patient are the ones that match what you are looking at, the disease process that put them on the vent, and the protocol you work under. A formula does not know that your patient is a COPD retainer, or that your agency caps a setting somewhere different, or that the chest just got tight in the last two minutes. You do. The math below gets you to a defensible first set of numbers quickly so you have attention left for everything the math cannot see.

This guide walks the sequence once with a running worked example, then gives you the reference tables to come back to on shift.

Initial vent settings at a glance (the cheat sheet)

Setting	Adult starting point	How it’s derived	Source
Ideal body weight (IBW)	Male: 50 + 2.3 x (height in inches - 60) kg. Female: 45.5 + 2.3 x (height in inches - 60) kg	Devine formula, from sex and height only	Devine, 1974
Tidal volume (Vt)	6 mL/kg IBW target; 4-8 mL/kg working range	IBW (kg) x selected mL/kg	6 mL/kg target: ARDS Network (ARMA trial), NEJM 2000;342(18):1301-1308. 4-8 range: StatPearls, Mechanical Ventilation, NBK539742
Minute ventilation target (Ve)	IBW / 10 L/min. Metabolic acidosis heuristic: IBW x 120 mL/kg/min	Weight-based target, not measured from the patient	Ve = IBW/10: Tobin, Principles and Practice of Mechanical Ventilation, 3rd ed., 2013. Acidosis multiplier: Rapid Vent Calculator app behavior, labeled a heuristic in the app itself, not a published standard
Respiratory rate (RR)	Derived, not chosen directly. Lands at about 17/min at default settings for any adult, regardless of size	RR = Ve (mL/min) / Vt (mL)	The app’s computation, per its own reference: Tobin, 2013
PEEP	5 cm H2O to start; 5-10 cm H2O is the common starting band	Fixed starting value, then titrated to oxygenation and hemodynamics	StatPearls, EMS Portable Ventilator Management, NBK537072
FiO2	Up to 100% after RSI or in hypoxia, weaned aggressively. 40-60% for a stable patient	Titrated against an SpO2 target	Rapid Vent Calculator app reference (post-RSI and stable-patient bands); StatPearls, NBK537072 (titrate to the minimum FiO2 required)
I:E ratio	1:2 typical (1:2 to 1:3)	Set by inspiratory flow rate	StatPearls, Mechanical Ventilation, NBK539742
Plateau pressure (Pplat) limit	Under 30 cm H2O	Measured with a 0.5-second inspiratory pause	NHLBI ARDS Clinical Network protocol card

Read these as where an adult patient usually starts, then adjust for the patient and the protocol you actually have.

Step 1: Start from ideal body weight, not actual weight

Ideal body weight comes from sex and height. The Devine formula:

Male: IBW (kg) = 50 + 2.3 x (height in inches - 60)
Female: IBW (kg) = 45.5 + 2.3 x (height in inches - 60)

Lungs scale with height. They do not scale with the number on a stretcher weight or an old chart. A patient who has gained sixty pounds since their driver’s license photo has not grown bigger lungs, and setting tidal volume off the scale weight overinflates them. That’s the actual-weight trap, and it’s one of the easiest vent-settings errors to make in the field.

Worked example: a 5’6“ female patient. Height is 66 inches, so:

IBW = 45.5 + 2.3 x (66 - 60) = 45.5 + 2.3 x 6 = 45.5 + 13.8 = 59.3 kg

That number, not her scale weight, drives every calculation from here forward.

This is the step where hand math goes wrong most quietly. The constant changes with sex, the height has to be in inches, and a transposed digit produces a number that looks reasonable and is not. Rapid Vent Calculator asks for sex and height and returns the IBW directly, which removes the two places the error usually enters.

This workflow, like the Rapid Vent Calculator app itself, applies to adult patients. The app declines to calculate below 58 inches of height, and this guide does not cover pediatric ventilation. If you’re working a pediatric airway, use your pediatric-specific protocol and equipment instead.

Step 2: Tidal volume at 6 mL/kg IBW

Tidal volume is IBW multiplied by a mL/kg target. The ARMA trial, the landmark ARDSNet study, established 6 mL/kg IBW as the lung-protective target: ventilating at 6 mL/kg instead of 12 mL/kg cut mortality from 39.8% to 31% in patients with acute lung injury and ARDS. In current practice, 4-8 mL/kg is the working range, with the exact number set by plateau pressure and the patient’s underlying lung pathology rather than picked off a fixed menu. The Rapid Vent Calculator app defaults to 6 mL/kg and offers 4 through 8 as selectable options, resetting to 6 on every new calculation.

Continuing the worked example:

Vt at 6 mL/kg = 59.3 x 6 = 355.8, truncated to 355 mL

Note the truncation, not rounding. A calculator that rounds up hands you a breath the math didn’t earn.

This is the lung-protective ventilation setting most crews already know by name and get wrong by hand, because the arithmetic has a sex-specific constant, a unit conversion, and a multiplication, all under a clock. For the full math, a chart across heights, and how this compares to doing it by hand, read the tidal volume calculator walkthrough.

Step 3: Rate comes from minute ventilation, not a guess

This is the step that most often runs backwards, so read it slowly.

The Rapid Vent Calculator app does not set a respiratory rate directly. It sets a minute ventilation target first, then derives the rate from it. The target: Ve = IBW / 10 L/min for a normal patient, or IBW x 120 mL/kg/min for a patient in metabolic acidosis, a heuristic the app itself labels a starting point, not a fixed rule. Rate then falls out of division:

RR = Ve (mL/min) / Vt (mL)

That’s the app’s own computation, built on the minute-ventilation approach described in Tobin’s Principles and Practice of Mechanical Ventilation. It is not the only method taught. General references state a more direct starting range: StatPearls gives 12 to 16 breaths per minute for adult mechanical ventilation, and its EMS chapter narrows that to 14 to 16 for patients in respiratory failure. Neither of those sources derives a rate from a weight-based Ve target the way the app does; they set rate directly. Both approaches land close to each other for a typical adult, which is useful to know, but they are not the same method, and this page does not blend them into one.

Finishing the worked example. IBW is 59.3 kg and Vt is 355 mL.

Ve = 59.3 / 10 = 5.93 L/min (displays as 5.9, internally 5930 mL/min)

RR = 5930 / 355 = 16.70, rounds to 17 breaths/min

Here’s the part worth teaching explicitly: that 17/min is not specific to this patient. Because Ve scales as IBW x 100 mL/min and Vt scales as IBW x 6 mL, the IBW cancels out of the division. At the 6 mL/kg default, the derived rate lands near 17/min for essentially any adult, tall or short, male or female. The rate does not scale with patient size. What moves it is the mL/kg you select and whether the acidosis mode is on.

The pattern holds across the selector. At 4 mL/kg, Vt drops to 237 mL and the derived rate rises to 25/min. At 8 mL/kg, Vt rises to 474 mL and the rate falls to 13/min. Switch on the acidosis heuristic at 6 mL/kg and Ve jumps to 7,116 mL/min, pushing the rate to 20/min with Vt unchanged. Only the minute ventilation target moved, and the rate followed it.

Step 4: PEEP and FiO2

Start PEEP at 5 cm H2O. That’s enough to overcome the intrinsic resistance of the ventilator circuit itself in most adult patients. Five cm H2O is the usual starting point; 5 to 10 cm H2O is the common starting band, titrated from there to oxygenation and hemodynamics rather than left fixed.

FiO2 depends on how the patient got to the vent. After rapid sequence intubation or in a hypoxic patient, start high, up to 100%, and wean aggressively as saturation improves. For a stable patient who isn’t hypoxic going in, 40-60% is the conventional starting band. Titrate FiO2 against an SpO2 target, and that target is protocol-dependent rather than a single fixed number. The app’s own reference lists 94-98% as a general adult target. The ARDSNet protocol card, for the lung-protective ARDS case specifically, uses a lower 88-95% band. Neither is “the” universal guideline number; both are named targets for different clinical pictures, and your local protocol governs which one applies.

ARDSNet pairs PEEP and FiO2 in a stepped titration table rather than adjusting either one alone. That table is beyond the scope of this page; a dedicated ARDSNet PEEP/FiO2 reference is planned for this site.

What is a normal PEEP on a ventilator?

Five cm H2O is the common physiologic starting point for an adult patient. It’s set to overcome ventilator-circuit resistance, not to treat a specific oxygenation problem on its own. From that starting point, PEEP is titrated upward in small increments as needed, watching both oxygenation and blood pressure, since higher PEEP can reduce venous return and drop cardiac output in a volume-depleted patient.

What is PEEP and FiO2?

PEEP is positive end-expiratory pressure: the pressure the vent maintains in the lungs at the end of exhalation, keeping alveoli from collapsing between breaths. FiO2 is the fraction of inspired oxygen the vent delivers, from 21% (room air) up to 100%. They work together on oxygenation: PEEP keeps more alveolar surface available for gas exchange, and FiO2 sets how much oxygen is in the air reaching that surface. Raising either one, alone or together, is how oxygenation gets titrated once a patient is on the vent.

Step 5: Reassess: pressures, EtCO2, and the patient

The settings above get you a starting point. The first minutes after that are for checking whether the starting point holds.

Watch peak inspiratory pressure (Ppeak) and plateau pressure (Pplat) as a pair, not individually. The app’s reference lists a Ppeak ceiling under 35 cm H2O; StatPearls teaches a slightly looser under 40 cm H2O as commonly accepted. Pplat, measured with a brief inspiratory pause, has a firmer ceiling: keep it under 30 cm H2O per the ARDSNet protocol card. If Ppeak rises with a normal Pplat, the problem is resistance: a kinked circuit, secretions, biting, water in the circuit, bronchospasm. If both rise together, the problem is compliance: worsening ARDS, a pneumothorax, a stiff chest wall.

Continuous waveform capnography is the transport monitoring standard, not an optional extra. The American Heart Association’s adult advanced life support guidance names it the most reliable method of confirming and monitoring correct tube placement, and NAEMSP’s prehospital ventilation position statement specifies continuous waveform capnography as part of post-ventilation monitoring. Normal EtCO2 sits at 35-45 mmHg.

When the vent alarms, work the patient first, not the machine. A high-pressure alarm mid-transport is almost always the airway or the circuit before it’s the lungs. A detailed alarm-by-alarm workflow is planned for this site.

The vent screen, defined

Setting	What it is	Normal adult range
Tidal volume (Vt)	Volume of air delivered per breath	4-8 mL/kg IBW
Respiratory rate (RR)	Breaths per minute the vent delivers	12-20/min is the normal adult resting range (StatPearls NBK537306); the app-derived set rate lands at 17/min at 6 mL/kg
PEEP	Pressure held in the lungs at end-exhalation	5-10 cm H2O
FiO2	Fraction of inspired oxygen	21-100%
Ppeak	Highest pressure during the breath, at the airway	Under 35 cm H2O per the app’s reference; under 40 cm H2O also commonly taught (StatPearls NBK526044)
Pplat	Pressure in the alveoli, measured with an inspiratory pause	Under 30 cm H2O
I:E ratio	Ratio of inspiratory time to expiratory time	1:2 to 1:3
Minute ventilation (Ve)	Total air moved per minute: Ve = Vt x RR	Not a single fixed value; see below

Minute ventilation has one clean formula and no single normal range worth memorizing as a bare number. Ve = Vt x RR. Run a rough adult example: a 500 mL tidal volume at 12-20 breaths per minute works out to roughly 6-10 L/min, but that figure moves with both inputs and isn’t a standalone target the way a PEEP or Pplat number is.

A full normal-values reference, with ABG and VBG ranges and a RASS chart in one place, is planned for this site.

What are the 5 basic modes of ventilators?

The five modes commonly taught are assist control (AC), SIMV, pressure support, pressure control, and CPAP. That grouping is a teaching convention, not a guideline-established standard, but it’s the shorthand you’ll hear at report and in class.

Two different things get bundled into the word “mode,” and separating them makes everything after this easier. One is who starts the breath and how often. The other is what the vent holds constant once the breath begins, a volume or a pressure. Assist control describes only the first. StatPearls defines AC as a mode where “the target and termination are determined by volume or pressure-limited breath strategy,” so AC can be volume-targeted or pressure-targeted. Saying “AC” at handoff is half an answer. Say volume AC or pressure AC.

Assist control (AC). Mandatory breaths at a set minimum rate; patient-triggered breaths get the same support.
SIMV. Mandatory breaths at a set rate, with spontaneous breaths allowed in between.
Pressure support. Every breath is patient-triggered and the vent adds a set pressure. No set rate.
Pressure control. The vent holds a set inspiratory pressure. Volume varies with the lungs.
CPAP. One continuous pressure, no mandatory breaths, the patient does the work.

There is no default transport mode

Volume AC gets taught as the transport mode because it is simple to set and every transport ventilator has it. Available is not the same as correct for this patient. StatPearls says it plainly: “Choosing a ventilation mode is somewhat arbitrary and will depend on the clinician’s experience, comfort level with various modes, and local protocols.” NAEMSP’s prehospital ventilation position statement names no mode at all, only that prehospital ventilation “should be disease-specific and should mirror in-hospital best practices.” The devices agree, and a ZOLL EMV+ 731 or a Hamilton-T1 ships with pressure-targeted and noninvasive modes because transport patients need them.

Four situations worth a second thought before volume AC: a patient who may not need a tube at all, since prehospital CPAP and BiPAP reduce intubation rates in cardiogenic pulmonary edema and COPD; a patient with strong respiratory drive, where breath stacking can deliver well above the volume you set; obstructive physiology, which needs expiratory time; and a patient who simply fights the breath, where a pressure-targeted mode is sometimes better tolerated. Mode is a protocol and scope question before it is a math question. Run what your agency authorizes, what your device supports, and what your training covers.

Do the app’s numbers still work in a pressure mode?

Partly. The tidal volume transfers. The rate does not.

Rapid Vent Calculator names no ventilation mode anywhere. It returns an ideal body weight, a tidal volume, a minute ventilation target, and a derived rate, and its own in-app note calls those “starting points to be titrated to end-tidal CO2, ABG/VBG, pH, plateau pressure, and clinical context.” Because Vt and rate are dialed in directly, those outputs land most cleanly on a volume-targeted mode.

The tidal volume number carries across, because lung-protective ventilation is a volume target rather than a mode. The NIH ARDS Network protocol says to select any ventilator mode and then sets the tidal volume goal, and the French formal ARDS guidelines permit a pressure mode with spontaneous breathing as long as the delivered tidal volume stays close to 6 mL/kg predicted body weight and does not exceed 8. Adaptive modes automate exactly that loop: PRVC is described as a mode where the ventilator “attempts to achieve set tidal volume at lowest possible airway pressure.”

So in pressure control or pressure support you can treat the app’s Vt as the number you are watching for, and move the inspiratory pressure or support level toward it. Four things travel with that:

You are not setting a volume, you are watching one. In a pressure mode the delivered volume comes from your set pressure plus the patient’s compliance, resistance, and effort. It changes when the patient changes. Check it breath to breath.
The pressure ceiling still wins. Plateau pressure under 30 cm H2O is the limit the volume target lives inside. Reaching the volume number does not make the pressure safe.
The rate and minute ventilation numbers do not transfer. In AC the app’s rate is a floor, not the delivered rate, and a patient triggering above it moves more air than the calculated target. In pressure support there is no set rate at all, so the app’s rate has nowhere to go. Once the patient is on the vent, the measured exhaled minute volume, the EtCO2 trend, and a blood gas replace the calculated target.
CPAP is out of scope. No mandatory breath and no per-breath pressure to titrate means nothing for a tidal volume target to steer.

Two scenarios that move the target

The worked example above (IBW 59.3 kg, Vt 355 mL, RR 17/min, PEEP 5 cm H2O, FiO2 titrated to target) is the baseline. Two common presentations shift it.

Obstructive patients (COPD, severe asthma) need expiratory time more than they need air moved, which is the mode-choice problem covered above. Metabolic acidosis needs a higher minute ventilation to clear more CO2, which is what the app’s IBW x 120 mL/kg/min pathway targets, a built-in heuristic rather than a published protocol. Each earns its own guide on this site.

Neither changes the fundamentals. The workflow still starts at IBW, tidal volume still respects lung-protective limits, and the rate is still derived rather than guessed. What changes is the target you are solving for.

Handoff parameters: what to report at transfer

Handoff is where vent settings EMS crews set in the field either hold up or get questioned by the next team. Report these, in order, every time:

Mode: what the vent is running, and whether it is volume-targeted or pressure-targeted
Tidal volume (Vt): the number in mL, not just “lung-protective”
Respiratory rate (RR): set rate, and whether the patient is triggering above it
PEEP: current value and whether it’s changed since intubation
FiO2: current value and the trend, weaning or holding
Ppeak and Pplat trend: rising, falling, or stable since you took the patient
EtCO2: current value from continuous waveform capnography
Sedation status: what’s on board, when it was last given, and the current RASS score

A crew that reports all eight in order hands off a patient, not a puzzle.

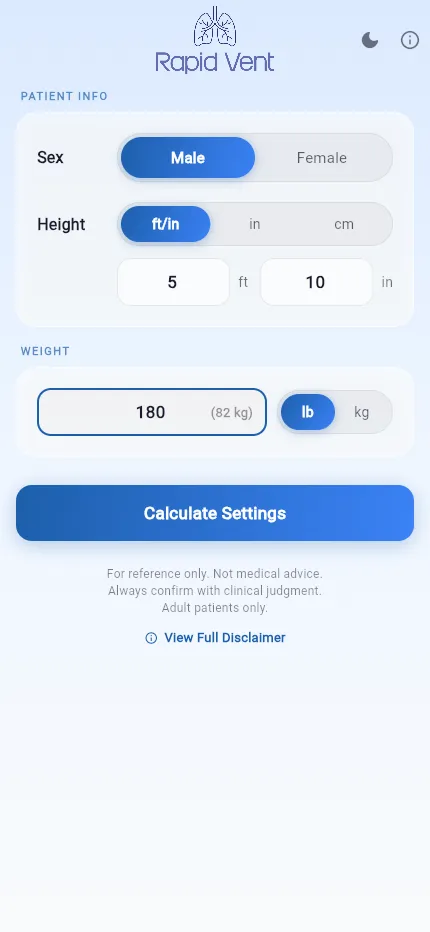

Run the numbers instead of doing them in your head

Every calculation in this guide, from the Devine IBW formula through the default 6 mL/kg tidal volume to the Ve-derived respiratory rate, is what the free ventilator calculator app runs in seconds. Enter sex, height, and weight, pick a mL/kg target, and read tidal volume, rate, and minute ventilation off the screen instead of doing the arithmetic mid-call.

Be clear about the division of labor. The app runs formulas. It has never seen your patient, it does not know what your protocol says, and it has no opinion about whether this patient should be ventilated at 6 mL/kg or 4. Those calls are yours, made from the presentation in front of you and the protocol you work under. What the app removes is the arithmetic: the sex-specific constant, the inches conversion, the division you would otherwise do in your head while someone reads you a blood pressure. You decide the targets. It does the multiplication, the same way every time.

Sources

ARDS Network (Brower RG, et al). Ventilation with lower tidal volumes as compared with traditional tidal volumes for acute lung injury and the acute respiratory distress syndrome. New England Journal of Medicine. 2000;342(18):1301-1308. https://pubmed.ncbi.nlm.nih.gov/10793162/
NHLBI ARDS Clinical Network. Mechanical Ventilation Protocol Summary (ventilator protocol card).
Devine BJ. Gentamicin therapy. Drug Intelligence and Clinical Pharmacy. 1974;8(11):650-655.
Tobin MJ, ed. Principles and Practice of Mechanical Ventilation. 3rd ed. McGraw-Hill; 2013.
StatPearls. EMS Portable Ventilator Management. https://www.ncbi.nlm.nih.gov/books/NBK537072/
StatPearls. Mechanical Ventilation. https://www.ncbi.nlm.nih.gov/books/NBK539742/
StatPearls. Ventilator Safety. https://www.ncbi.nlm.nih.gov/books/NBK526044/
StatPearls. Capnography. https://www.ncbi.nlm.nih.gov/books/NBK539754/
StatPearls. Physiology, Respiratory Rate. https://www.ncbi.nlm.nih.gov/books/NBK537306/
StatPearls. Physiology, Tidal Volume. https://www.ncbi.nlm.nih.gov/books/NBK482502/
American Heart Association. Adult Advanced Life Support Guidelines, Advanced Airway Placement. https://cpr.heart.org/en/resuscitation-science/cpr-and-ecc-guidelines/adult-advanced-life-support
NAEMSP. Prehospital Mechanical Ventilation: Position Statement and Resource Document. Prehospital Emergency Care. 2022;26(sup1):88-95. https://pubmed.ncbi.nlm.nih.gov/35001824/

Every value on this page is a starting estimate for adult patients, calculated from published formulas and named clinical sources. Rapid Vent Calculator is a clinical reference and calculation aid for licensed healthcare professionals. It is not a protocol, a diagnosis tool, or a substitute for clinical judgment, and it cannot assess the patient in front of you. Verify all values against your patient, your local protocols, and your scope of practice.
